Model: CUSHION TIRE

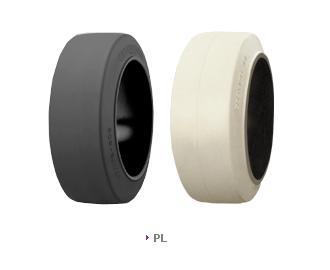

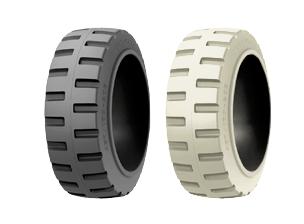

Press-on Band (CUSHION TIRE)



NEXEN's Press-on Band(Cushion Tire) is designed for forklift trucks, special vehicles, and intensive indoor applications.
Extreme care is used in every phase of the manufacturing process including superior bonding and accurate pressure curing methods.
Long tread wear, high stability and durable construction make NEXEN Press-on Band a wise choice.


Specitication

TIRE SIZE PATTERN NON
MARKING		 LOAD CAPACITY (kg)
Forklift Other Vehicles
Up to 10km/h Up to 16km/h Up to 16km/h
mm inch PL MS Load W. Steer W. Load W. Steer W.
254X100       O
254X127 10X5-6 1/4     O
255X120       O
300X80   O   O
254X114       O
254X102   O   O
305X127 12X5-7 1/8   O O
305X145 12X5 3/4-7 1/8   O O
305X152       O
280X135     O O
315X145     O O
330X145       O
343X140   O   O
343X152       O
382X142     O O
380X165       O
343X140-203.2 13 1/2X5 1/2-8 O O O 1,510 1,240 1,345 1,130 1,080
343X152-203.2 13 1/2X6-8   O O 1,560 1,280 1,380 1,160 1,115
356X114-203.2 14X4 1/2-8 O   O 1,170 960 1,045 875 830
406X127-266.7 16X5-10 1/2 O O O 1,510 1,240 1,345 1,130 1,080
406X152-266.7 16X6-10 1/2 O O O 1,910 1,570 1,710 1,435 1,360
381X152-285.8 15X6-11 1/4 O   O 1,600 1,310 1,415 1,190 1,140
413X127-285.8 16 1/4X5-11 1/4 O   O 1,530 1,250 1,360 1,145 1,090
413X152-285.8 16 1/4X6-11 1/4 O O O 1,920 1,580 1,715 1,440 1,370
413X178-285.8 16 1/4X7-11 1/4 O O O 2,325 1,900 2,060 1,735 1,650
432X127-308 17X5-12 1/8 O   O 1,570 1,290 1,400 1,180 1,120
432X152-308 17X6-12 1/8   O O 1,980 1,630 1,770 1,485 1,410
457X127-308 18X5-12 1/8 O O O 1,640 1,350 1,470 1,230 1,170
457X152-308 18X6-12 1/8 O O O 2,100 1,720 1,870 1,575 1,500
457X178-308 18X7-12 1/8 O O O 2,550 2,100 2,280 1,910 1,820
457X203-308 18X8-12 1/8 O O O 3,000 2,475 2,680 2,250 2,150
457X229-308 18X9-12 1/8 O O O 3,450 2,850 3,090 2,600 2,475
533X127-381 21X5-15   O O 1,840 1,510 1,640 1,385 1,320
533X152-381 21X6-15   O O 2,350 1,930 2,100 1,765 1,680
533X178-381 21X7-15 O O O 2,875 2,350 2,560 2,150 2,050
533X203-381 21X8-15 O O O 3,375 2,775 3,025 2,540 2,425
533X229-381 21X9-15 O   O 3,900 3,200 3,475 2,920 2,775
508X203-406.4 20X8-16 O O O 3,040 2,495 2,720 2,280 2,170
508X229-406.4 20X9-16   O O 3,490 2,865 3,120 2,620 2,490
559X203-406.4 22X8-16   O O 3,300 2,900 3,130 2,640 2,112
559X229-406.4 22X9-16 O O O 4,050 3,325 3,600 3,025 2,875
  22X12-16 O   O
  40X16-30 O   O
